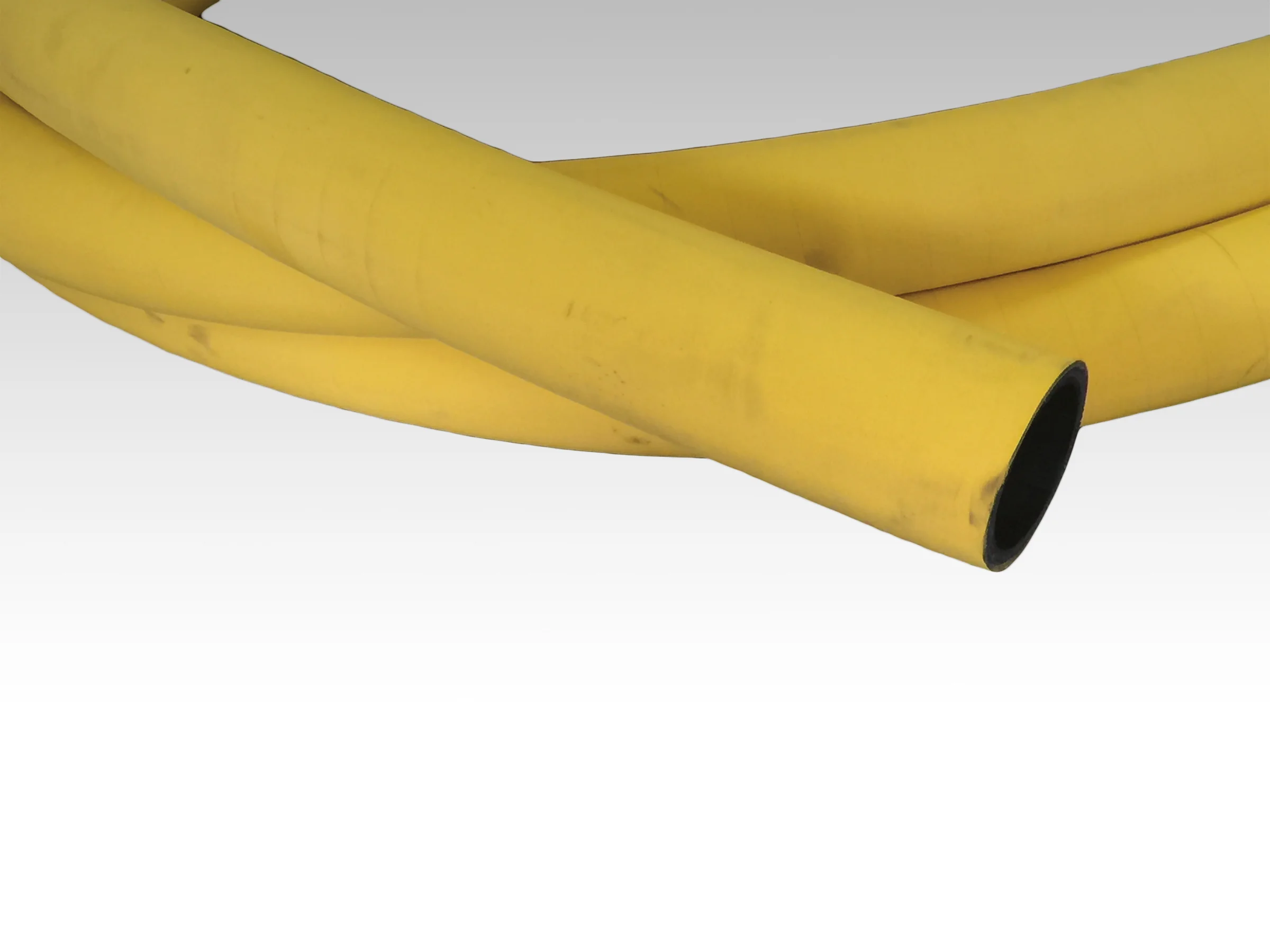

General Purpose Wire Braided Air Hose

General Purpose Wire Braided Air Hose

General Purpose Wire Braided Air Hose

$0.00

SPEC 070-WB

High pressure hose that can be used for various purposes

Application:

Air transfer

Hose Construction:

Tube: black oil resistant EPDM
Reinforcement: multiple plies of synthetic textile and braided steel wire
Cover: yellow, oil abrasion and ozone resistant neoprene
Working Temperature -40°F to 250°F
4 to 1 Safety Factor
Max Length: 200 ft.

Get Purchasing Information


    ID (inches)
    OD (inches)
    Wire Braids
    Working Pressure (PSI)
    Weight (lbs/ft.)


    1
    1.5
    2
    1,000
    64


    1.25
    1.8
    2
    1,000
    85


    1.5
    2.3
    2
    1,000
    125


    2
    2.8
    2
    800
    180


    2.5
    3.5
    2
    800
    240


    3
    3.8
    2
    500
    275


    4
    4.8
    2
    500
    400
